The Husky 2200 has a 2 inch (50.8 mm) connection and is available in polypropylene and PVDF.
The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable.
This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.

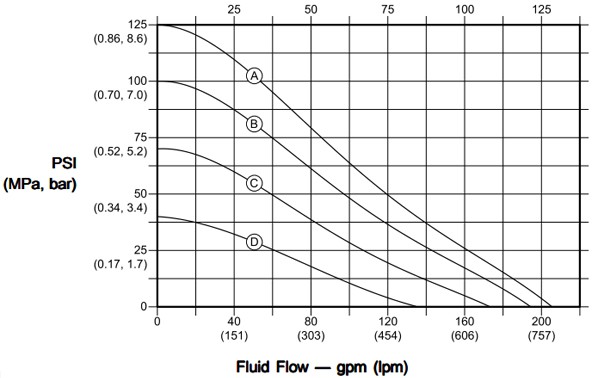

| Maximum Fluid Flow: | 200 gpm (757 l/min) |
| Maximum Fluid Discharge Pressure: | 125 psi (8.6 bar, 0.86 MPa) |
| Maximum Size Pumpable Solids: | 3/8 in (9.5 mm) |
| Fluid Displacement Per Cycle: | 1.6 g (6.1 litres) |
| Max. Flow Rate (l/min) | 757 |
|---|---|
| Max. Input Pressure (psi) | 125 |
| Max. Output Pressure (psi) | 125 |
| Fluid to Air Ratio | 1:1 |
| Air Inlet Size | 3/4" NPT(F) |
| Pump Inlet/ Outlet Size | 2" Flange (End) |
| Max. Pump Speed | 155 cpm |
| Fluid Section Material | PVDF |
| Centre Section Material | Polypropylene for Overmoulded Diaphragms |
| Porting | PVDF End Flange ANSI/DIN |
| Seats | PVDF |
| Balls | PTFE |
| Diaphragms | PTFE Overmoulded |
| Manifold O-Rings | PTFE |
