Graco Husky 205 1/4" Air-Operated Double Diaphragm Pump - D11026
SKU
D11026
£306.90 £255.75
Overview
Acetal Fluid Section, Polypropylene Centre Section, Acetal Balls, Santoprene Diaphragms, PTFE Encapsulated Flouroeleastomer O-Rings
1/4 Inch Positive Displacement Double Diaphragm Pump
The Husky 205 has a 1/4 inch (6.3 mm) connection and is available in polypropylene, groundable acetal and PVDF.
The Husky 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration.
Features
- 1/4 inch (6.35 mm) end-porting double diaphragm pump
- Spring check valves for superior priming in any mounting configuration
- Remote control option using an external controller
Benefits
- True-formed PTFE and Santoprene diaphragms for enhanced performance
- Spring loaded checks allow the diaphragm pump to work in any orientation
- Inlet and Outlet are interchangeable
- Remote control option using an external controller

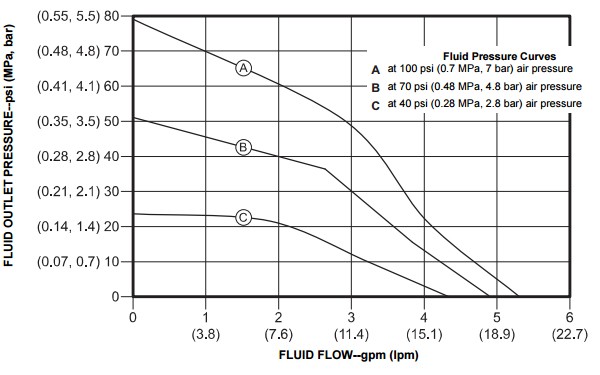

Performance
Overview
| Maximum Fluid Flow: | 5.0 gpm (18.9 l/min) |
| Maximum Fluid Discharge Pressure: | 100 psi (7 bars, 0.7 MPa) |
| Maximum Size Pumpable Solids: | 0.06 inch (1.5 mm) |
| Fluid Displacement Per Cycle: | 0.012 g (0.045 litres) |
| Max. Flow Rate (l/min) | 18.9 |
|---|---|
| Max. Input Pressure (psi) | 100 |
| Max. Output Pressure (psi) | 100 |
| Fluid to Air Ratio | 1:1 |
| Air Inlet Size | 1/4" NPT(F) |
| Pump Inlet/ Outlet Size | 1/4" Hybrid Thread (allows for 1/4" NPT or 1/4" BSP) |
| Max. Pump Speed | 250 cpm |
| Fluid Section Material | Acetal |
| Centre Section Material | Polypropylene |
| Porting | Acetal Standard Porting (NPT) |
| Seats | n/a |
| Balls | Acetal |
| Diaphragms | Santoprene |
| Manifold O-Rings | PTFE Encapsulated Flouroeleastomer |
| Certification Required | ATEX |
