SKU
654500
$3,051.16 $2,542.63
Overview
Polypropylene Fluid Section, Polypropylene Standard Air Valve (NPT) Centre Section, Polypropylene Seats, Santoprene Balls, Santoprene Diaphragms, PTFE O-Rings
1.5 Inch Positive Displacement Double Diaphragm Pump
The Husky 15120 has a 1.5 inch (38.1 mm) connection and is available in polypropylene and PVDF.
The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
Features
- 1.5 in (38.1 mm) ANSI center and end-porting options available
- High flow - 120 gpm (454 lpm) in a compact, portable size
- Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
- Lube-free operation
- Available in polypropylene and PVDF
Benefits
- Overall improved efficiency (up to 40% more efficient)
- Highest fluid flow rate in its class
- Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
- Expanded material offering to handle endless applications

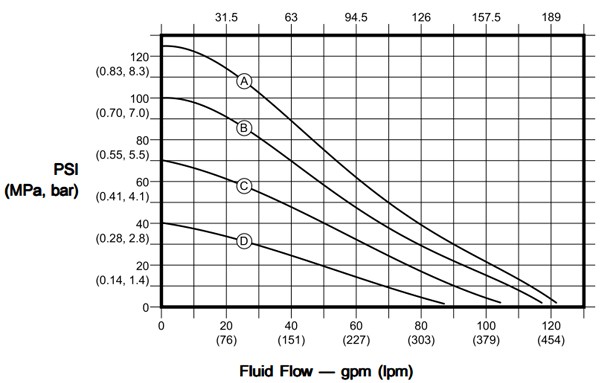

Performance
Overview
Maximum Fluid Flow: | 122 gpm (462 l/min) |
Maximum Fluid Discharge Pressure: | 25 psi (8.6 bar, 0.86 MPa) |
Maximum Size Pumpable Solids: | 1/4 in (6.3 mm) |
Fluid Displacement Per Cycle: | 0.66 gallons (2.5 litres) |
Max. Flow Rate (l/min) | 454.00 |
---|---|
Max. Input Pressure (psi) | 125 |
Max. Output Pressure (psi) | 125.00 |
Fluid to Air Ratio | 1:1 |
Air Inlet Size | 1/2" NPT(F) |
Pump Inlet/ Outlet Size | 1.5" Flange (Centre) |
Max. Pump Speed | 190 cpm |
Fluid Section Material | Polypropylene |
Centre Section Material | Polypropylene Standard Air Valve (NPT) |
Porting | Polypropylene Centre Flange ANSI/DIN |
Seats | Polypropylene |
Balls | Santoprene |
Diaphragms | Santoprene |
Manifold O-Rings | PTFE |
