Graco Husky 1050 1" Air-Operated Double Diaphragm Pump - 649034

    SKU
    649034
    $1,345.43 $1,121.19
    Overview
    Polypropylene Fluid Section, Polypropylene Standard Air Valve (NPT) Centre Section, PTFE Balls, PTFE Diaphragms, PTFE O-Rings

    1 Inch Positive Displacement Double Diaphragm Pump

    The Husky 1050 has a 1 inch (25.4 mm) connection and is available in aluminum, polypropylene, conductive polypropylene, PVDF, stainless steel and hastelloy.

    The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

    The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.


    Features

    • 30% more efficient than the market leader
    • 20% increase in fluid flow compared to the Husky 1040
    • Up to 5 times longer diaphragm life compared to other double diaphragm pumps in its class
    • Expanded material offering to handle endless applications

    Benefits

    • Up to 5 times longer diaphragm life compared to other air-operated diaphragm pumps in its class.
    • Expanded material offering to handle endless applications.
    • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation.
    • Offered in ATEX configuration.

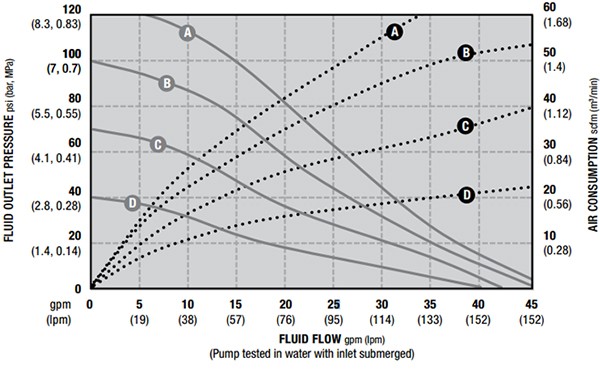

    Performance

    Overview

    Maximum Fluid Flow:50 gpm (189 lpm)
    Maximum Fluid Discharge Pressure: 125 psi (8.6 bar, 0.86 MPa)
    Maximum Size Pumpable Solids: 1/8 in (3.2 mm)
    Fluid Displacement Per Cycle:0.17 g (0.64 liters)
    More Information
    Max. Flow Rate (l/min) 189
    Max. Input Pressure (psi) 125
    Max. Output Pressure (psi) 125
    Fluid to Air Ratio 1:1
    Air Inlet Size 1/2" NPT(F)
    Pump Inlet/ Outlet Size 1" Flange (End)
    Max. Pump Speed 280 cpm
    Fluid Section Material Polypropylene
    Centre Section Material Polypropylene Standard Air Valve (NPT)
    Porting Polypropylene End Flange ANSI/DIN
    Seats Polypropylene
    Balls PTFE
    Diaphragms PTFE
    Manifold O-Rings PTFE
